D4 fiber optic connectors special optical fiber connector for SM MM patch jumpers making

China D4 fiber optic connectors special optical fiber connector for SM MM patch jumpers making proveedor
D4 fiber optic connectors special optical fiber connector for SM MM patch jumpers making proveedor D4 fiber optic connectors special optical fiber connector for SM MM patch jumpers making proveedor

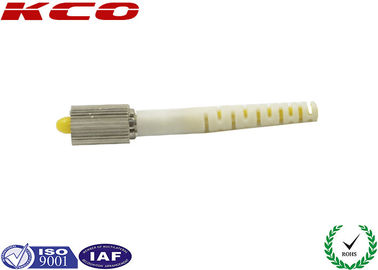

Ampliación de imagen :  D4 fiber optic connectors special optical fiber connector for SM MM patch jumpers making

Datos del producto:

Lugar de origen: Guangdong, China
Nombre de la marca: KCO
Certificación: ISO9001, RoHS
Número de modelo: LC/UPC, LC/APC, LC/PC

Pago y Envío Términos:

Cantidad de orden mínima: 10 piezas
Precio: Negotiation
Detalles de empaquetado: Bolso del PE, caja del cartón, plataforma de madera
Tiempo de entrega: 2~5 días después de consiguen el pago
Condiciones de pago: Carta de crédito de Western Union, T/T,
Capacidad de la fuente: 100.000 piezas / mes
Contact Now
Descripción detallada del producto
Tipo: LC/UPC, LC/APC, LC/PC Pérdida de inserción: 0.2dB
el modo de: Con varios modos de funcionamiento, milímetro, solo modo, SM, modo mono pérdida de retorno: 55dB
Corazones: 2 corazones, duplex, 1 corazones, simplex, fibras multi Longitud: 3M, los 5m, modificados para requisitos particulares

D4 fiber optic connectors special optical fiber connector for SM MM patch jumpers making



Fiber Optic Connectors Descriptions:

- The D4 fiber optic connectors hold a single fiber in a 2.0 mm ceramic ferrule.

- The D4 connector’s body is similar in design to the FC connector, except for the smaller ferrule, and a longer coupling nut.

- Properties and applications of the D4 are likewise comparable to the FC connector.

- Fiber Optic Connectors is the device connected with two optical fiber cables. It is face to face precision connecting in order to make the transmission fiber coupled to the receiving fiber. To make sure the transmission system and performance stable, the insertion loss and optical performance of fiber optic connector should be excellent.



Fiber Optic Connectors Applications:

- Telecommunication Network, wide area networks.

- Local Area Network(LAN).

- Testing Equipment.

- Optical Switch interface connections
- Gigabit Ethernet
- CATV and WAN
- Testing Instrument, active device connection

- Premise Installations
- Telecommunication Networks

- Fiber to the home (FTTH)



Fiber Optic Connectors Features:

- High quality ceramic components and Material.
- End-face geometry requirement complies to Telcordia GR-326-CORE.
- 100% tested on optical performance (Insertion Loss & Return Loss).
- Simplex, duplex and higher core densities.
- 900 micron, 2mm, 3mm cable applications.

- Low insertion loss

- High return loss

- Excellent repeatability

- Compact and anti-pull design
- High precision exact alignment
- UPC, PC or APC polished connectors



Fiber Optic Connectors Product Pictures:

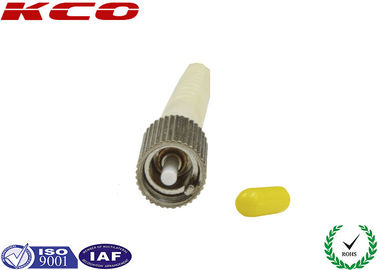

D4 fiber optic connectors special optical fiber connector for SM MM patch jumpers making



Details about Fiber Optic Connectors:

Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic to meet standard; amiability ratings
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Connector Style SC, FC, ST, LC, MTRJ, etc



Fiber Optic Connectors Specifications:


Item
Single mode Multimode
PC UPC APC 62.5/125 50/125 50/125 10G
Insert Loss/connector
(single Fiber)
0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.)
Return Loss ≥45 dB ≥50 dB ≥60 dB N.A
Insert Loss/MTRJ Connector 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.)
Pull Strength ≥98N ≥98N



Ordering Information:
1, Connector type: SC, LC, FC, ST, MTRJ, SMA, DIN, D4, etc
2, Polish: UPC, PC, APC
3, Mode: Single mode, Multimode
4, Fiber Count: Simplex or Duplex
5, Connector boot diameter: 0.9mm, 2.0mm or 3.0mm



Our Fiber Optic Connectors packing ways:

D4 fiber optic connectors special optical fiber connector for SM MM patch jumpers making



OEM Service: Label customized is available



We can provide Fiber Optic Connectors for single mode, multimode, simplex, duplex. Also OEM Service is available, such as package, label, etc all can be customized. We can supply all type of fiber optic connector such as SC, FC, ST, LC, MTRJ, MU, DIN, etc in un-assembly, pre-assemly status. All our Fiber Optic Connector meet RoHS Compliant, and 100% test Insert loss before shipment.
